Place of Origin |
Shanghai China (Mainland) |
Brand Name |
QinWei |
Model Number |
GZ-155-7 |

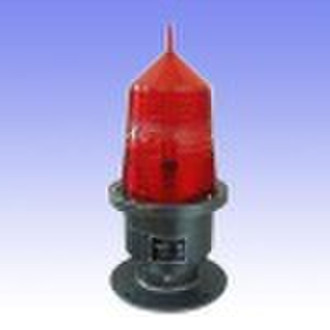

Product Description: GZ155-7-type slow flash (light intensity) Aviation obstruction light is the second post-GZ-7-type. The latest developed another upgrade. The product uses advanced MCU control computer chips. Light beacon exclusive selection of imports of long-life halogen tube (inside the prepared 7), usually a tube of work. The rest of standby, when the lamp fails, automatically switches to the other alternative tube continue to work. Shade selection of professionally designed buoy 155mm diameter glass Fresnel lens principle, resistant to sunlight aging, improve the efficiency of light emitting devices, visual effects, better and so on. (The product includes soft-start flashing mode) of the lamp base system device using aluminum alloy casting. Water resistant to corrosion. With a small volume. Weight. Nice. The advantages of easy installation.Product Technical Parameters: Operating Voltage: AC220V Frequency: 50HZ Rated power consumption: 150W normal, or 200W (optional) Equipped with the light source: seven aids to navigation exclusive Halogen Lamp Tube Flash Frequency: Soft-start 12 beats / min (default) 10 30 beats / min (adjustable) Flash Strength: 2000cd ± 25% (civil aviation standards ≥ 1600cd) Shade Color: red, green, transparent Light Control Sensitivity: 200LX (adjustable) The working environment: -40 °C +60 °C Size: 455mm × 220mm Chassis dimensions: pitch circle diameter of 185mm on a 12mm diameter uniform 4 holes Light device weight: ≈ 6.5kg Scope of application: 60 m <H <≤ 105 Mi (H height of obstacles is empty)There are three ways for flash synchronization options: Economic type (Picture-light): The single main light control. Vice-light synchronized with the main light flash. Common type: the use of air barriers to light special synchronization control box. Synchronized flash. Smart: Using synchronous parallel cable connection. Achieving group of lights flash sync.
